Advantages of Brentwood High Load Settling Tubes (Lamen Settling Plates) – USA:

UV-resistant PVC material is very durable, resistant to corrosion and aging.
Pure PVC plastic material with UV protection must meet the NSF clean water standards of the US and Europe.
Materials, shapes, and construction must meet the standards of the American Association of Waterworks Engineers (AWWA) and the International Waterworks Association (IWA).
The surface of the settling tube is smooth and free from sludge buildup.
The warranty period for high-load settling tubes (lamellar settling plates) is up to 15 years. Within 15 years, if any damage occurs due to material aging, we will replace it completely free of charge for the customer.

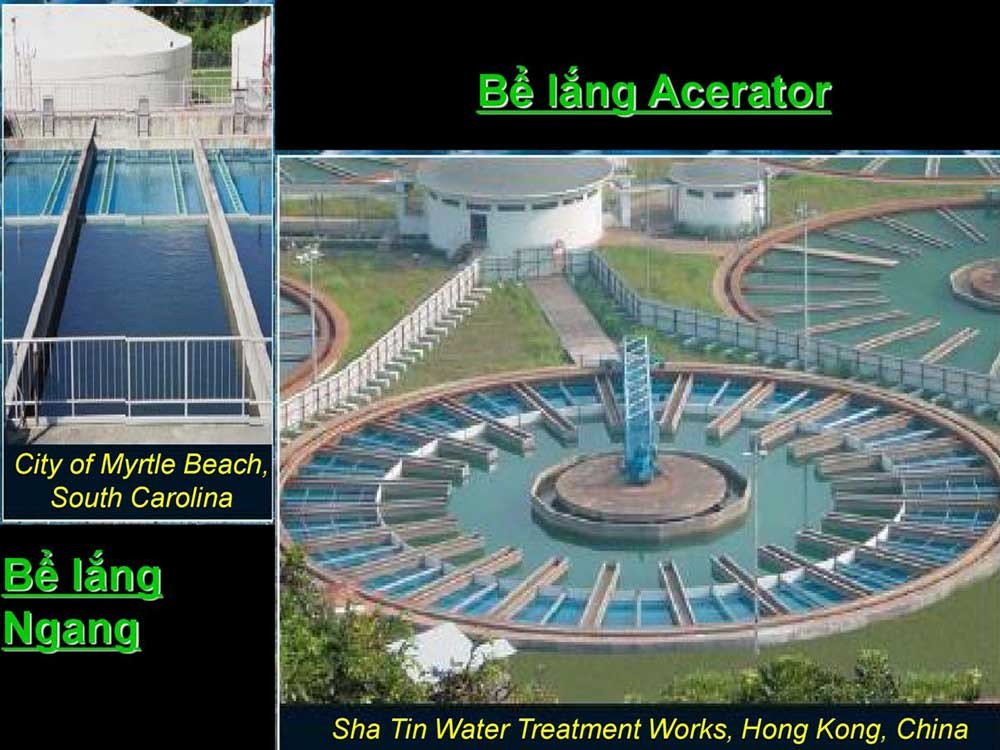

Modern and optimized technology suitable for all types of sedimentation tank designs: high-load sedimentation tanks, horizontal sedimentation tanks, vertical sedimentation tanks, accerator sedimentation tanks, pusaltor sedimentation tanks, vertical sedimentation tanks with suspended solids, and flat-bottom vertical sedimentation tanks.
Improve water quality after sedimentation, turbidity after sedimentation ≤ 2 NTU.
Save on PAC and aluminum flocculant chemicals.
Increase the filter cycle of the filter tank to ≥ 72 hours, saving electricity and filter cleaning water.

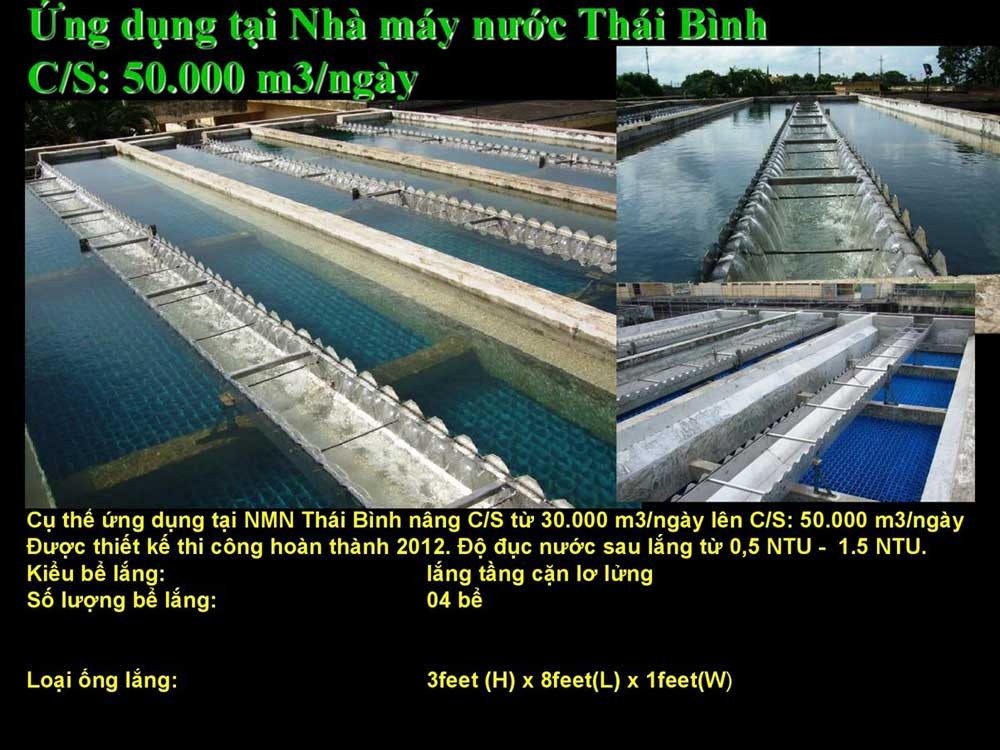

Applications of high-load settling tubes:

The new design of high-load settling tanks utilizes modern technology and saves 3-4 times the construction area compared to traditional technology, while also shortening construction time.
Improve the quality of the sedimentation water and increase the capacity of the existing sedimentation tank by 2-5 times compared to the original design capacity.
Improve processing technology and operational management for water treatment plants.

The detailed specifications are as follows:

Model: IRF6036
Manufacturer: Brentwood – USA
Origin: USA
Construction: Made of UV-resistant PVC plastic, durable and resistant to corrosion and aging.
Color: Blue.
Water supply standards: PVC material meets NSF clean water standards and the standards of the American Water Works Association (AWWA). It also prevents sludge buildup on the settling pipe surface.
Material lifespan: 15 – 20 years
Sedimentation tube shape: Hexagonal sedimentation tube
Cross-sectional area of 1 settling tube: 2.65 in2 x 2 (45.3 cm2 x 2 holes)
Settling tube diameter: 2.91 in (≈74 mm) (equivalent diameter)
Angle of inclination: 600.
Module dimensions: LxWxH = 3050 x 305 x 910 (mm)
Modular structure: consists of 5 corrugated panels and 5 flat panels.
Connection: using specialized adhesive for bonding PVC settling pipes.
Reinforcement slots: located at the top and bottom of the settling tube module, their function is to increase the rigidity and load-bearing capacity of the entire module during operation and cleaning of the settling tube.
Wavy grooves: The flat surface must have wavy grooves so that the water flows at a 60° angle while also curving vertically.
